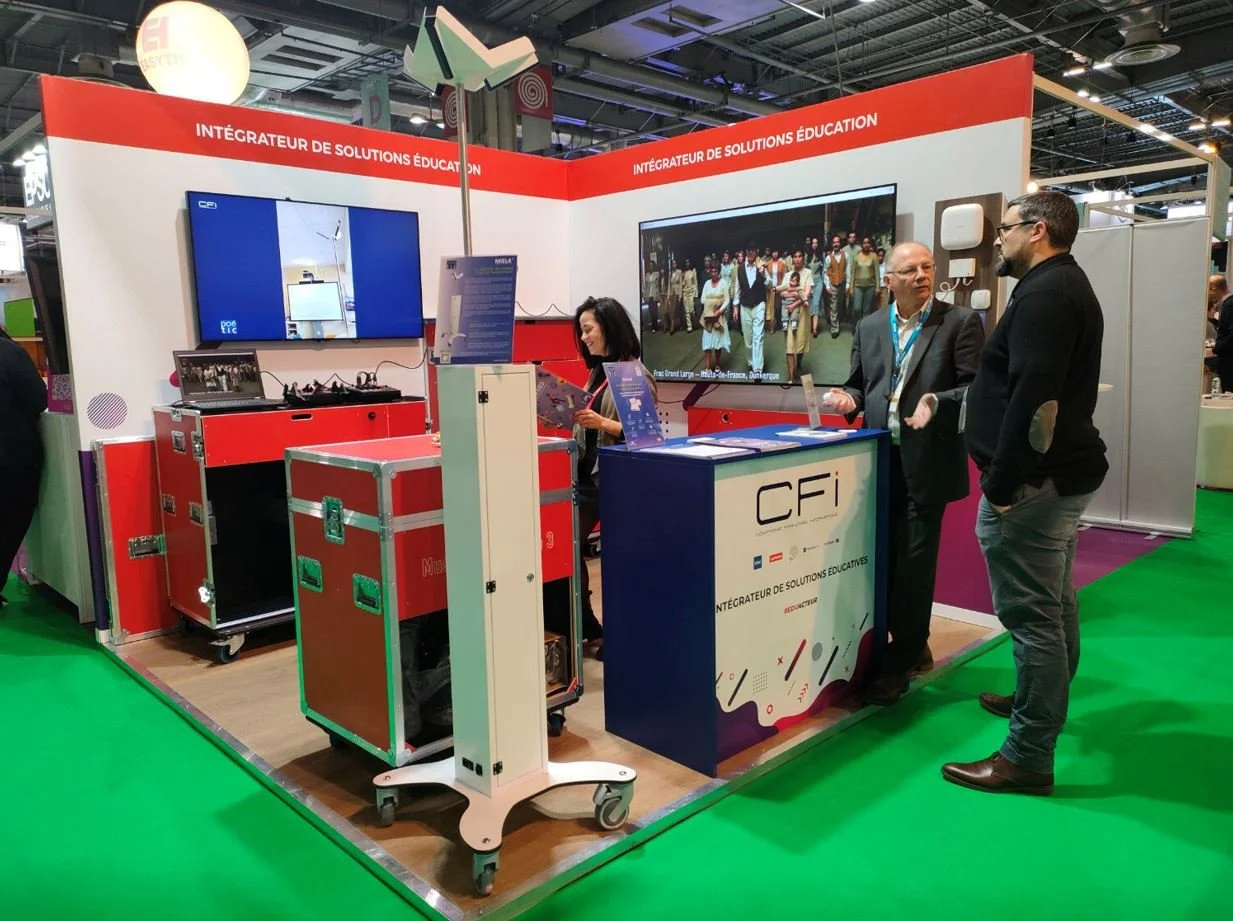

PoE-Tic Displayed and Demonstrated Their MIELA System at The Educ@tech Expo 2022 Edition in Paris, France
Photo credit to Compagnie Francaise Informatique (CFI) and PoE-Tic
Educ@tech Exposition 2022 Edition
PoE-Tic and CFI presented the MIELA at the recent Educ@tech Expo 2022 Edition in Porte de Versailles, Paris.
The 2022 edition of Educ@tec Expo was held at Paris Expo Porte de Versailles, Paris between the 30th Nov to the 2nd Dec 2022. It was a 3-day event organised by WEYOU GROUP.
For more than 25 years, Educatec-Educatice has established itself as the reference trade fair for discussing and building the future of education. Today, technology, multimedia and collaborative tools reign supreme. Each year, it brings together nearly 12,000 professionals around a major societal issue: the transformation of schools through digital and new technologies.
Dominique LeBourse, CEO of PoE-Tic, said: “Thank you again for participating in the success of this conference and the success of this edition of Educatech Expo where we learned about many wireless infrastructure projects aimed at reducing exposure to radio waves and energy consumption.”
Sylvain Leroux, Smart Buildings & Light Communications Marketing Director at Orange, commented the following: “Delighted with this conference in Educatech Expo where we were able to discuss connectivity in schools in the service of the educational project. During these fascinating exchanges, there was talk of pooling, hybridization, energy sobriety, the Bee law, IoT & connected buildings. Multiple complementary solutions are already available and depend on each use and each context. It was also an opportunity to see concrete and accessible solutions such as detachable Wi-Fi & LiFi.”
Below are some photos taken by ARATICE:

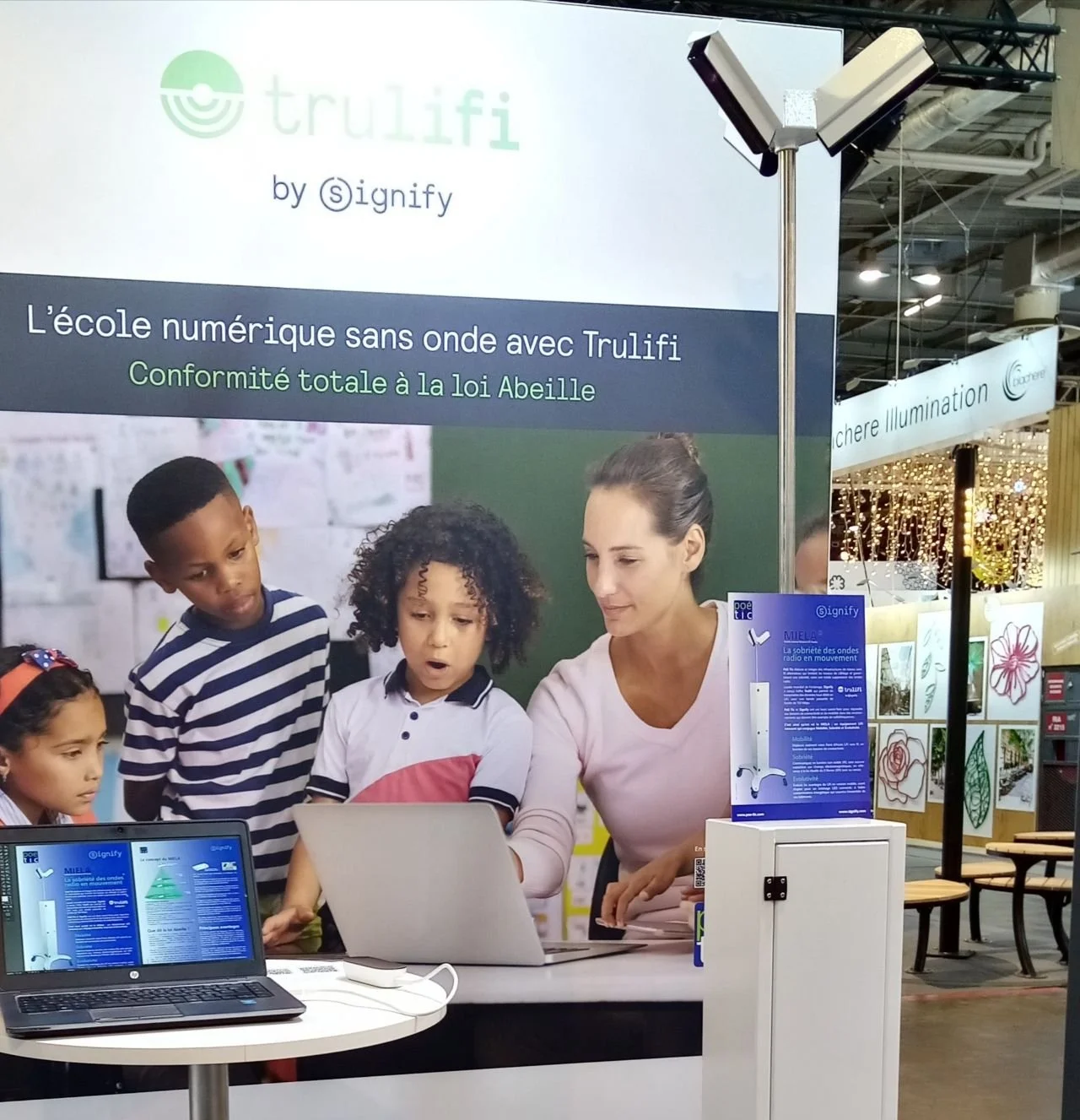

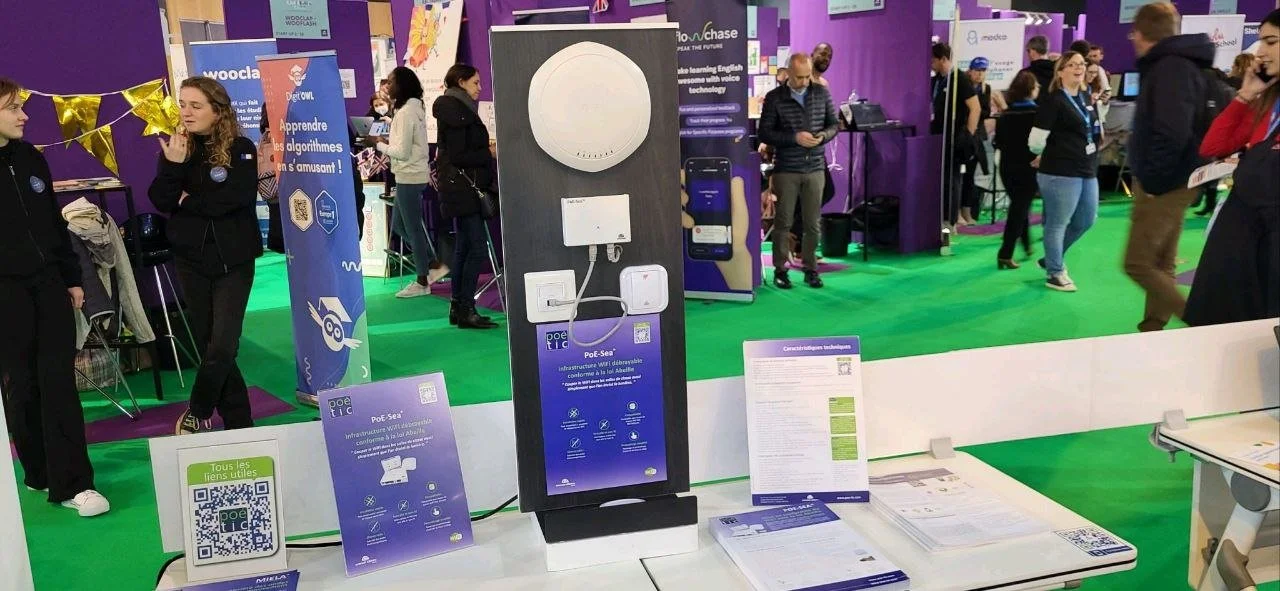

1 - MIELA Display - Photo credit to ARATICE and PoE-Tic

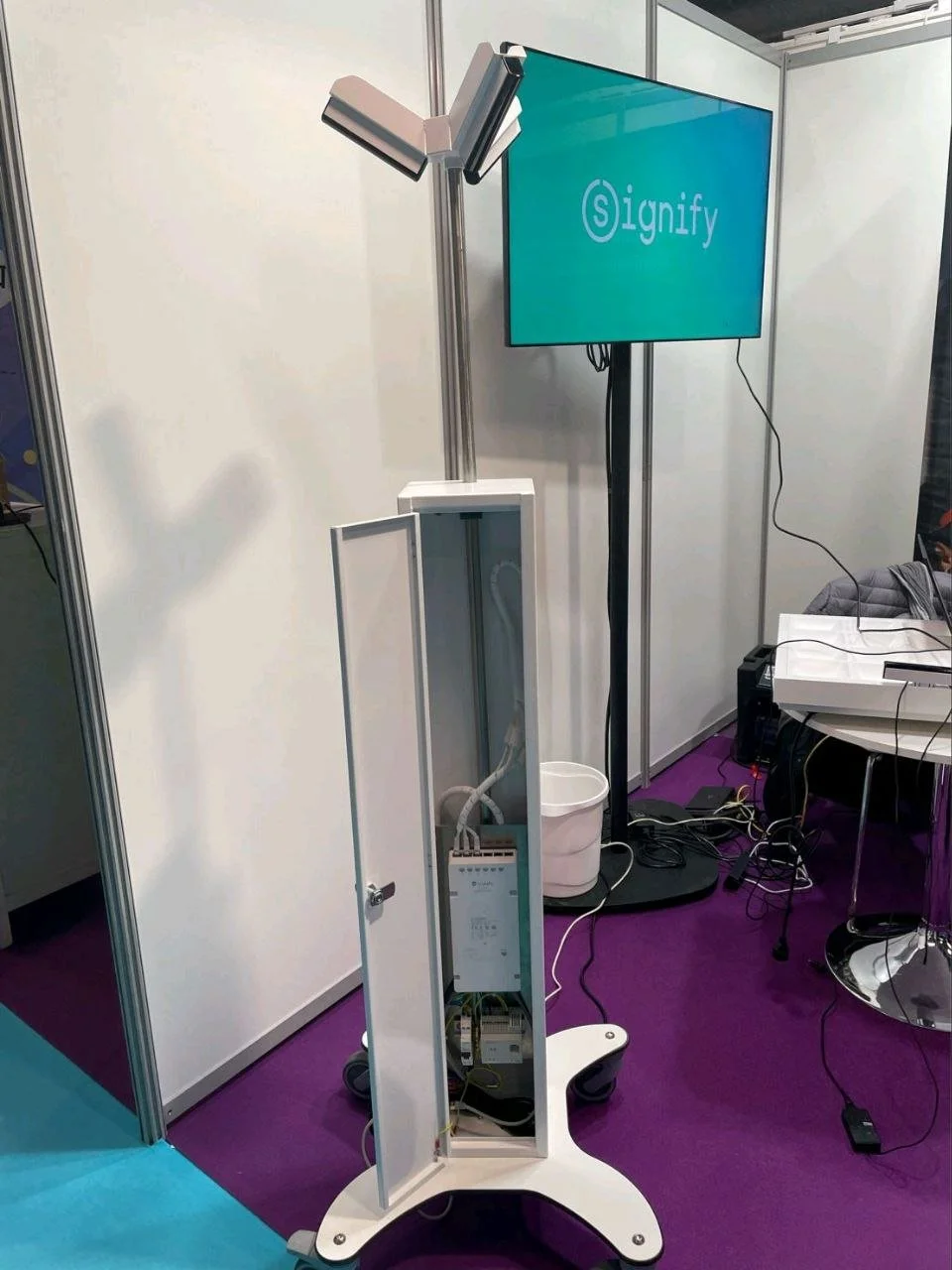

2 - MIELA Display - Photo credit to ARATICE and PoE-Tic
OLEDCOMM
Oledcomm was also in attendance as an exhibitor at the Educ@tech expo 2022 edition. They demonstrated to visitors their LiFi products, which include their LIFIMAX systems and LIFIMAX Tab.

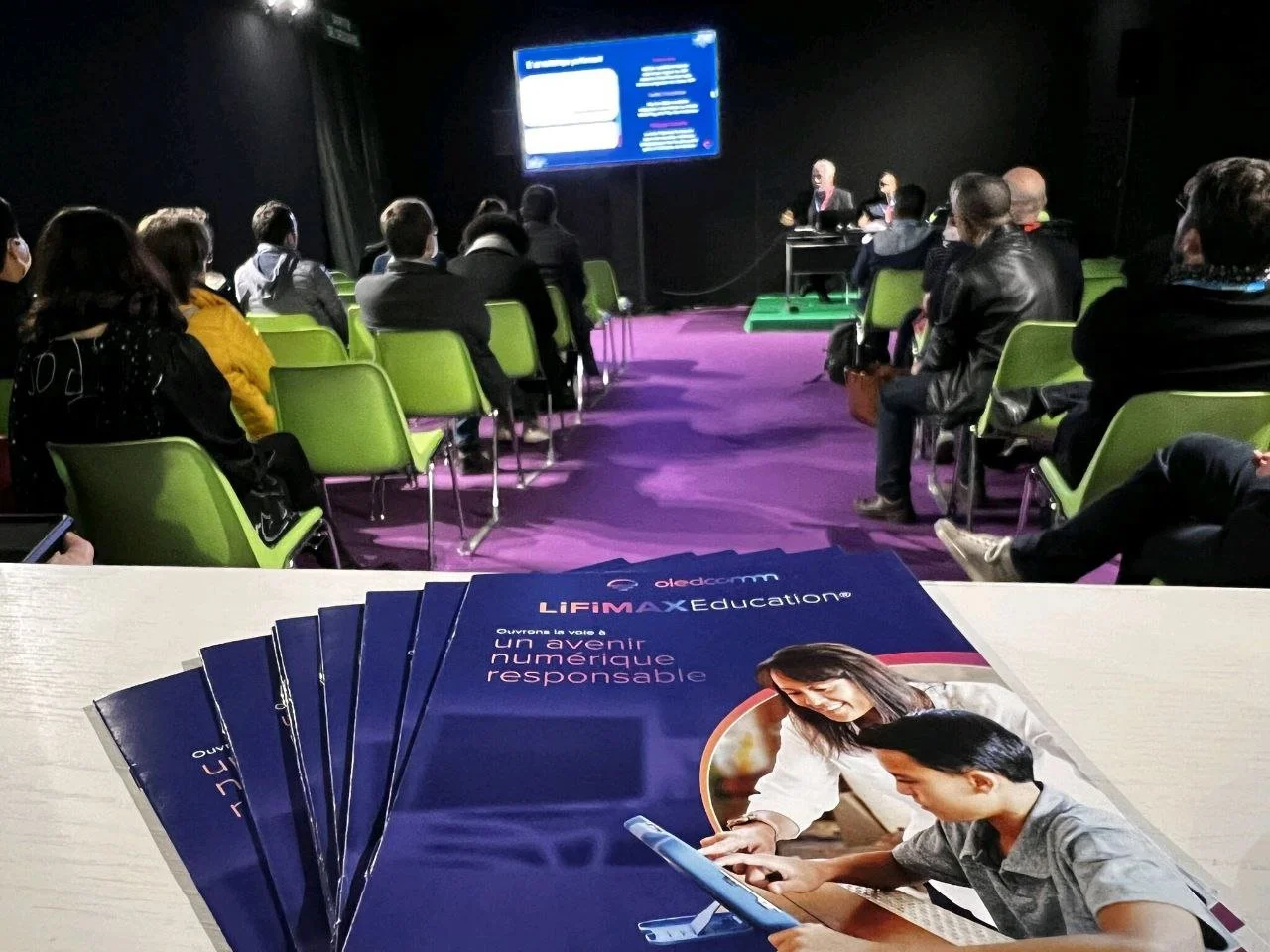

Photo credit to Oledcomm

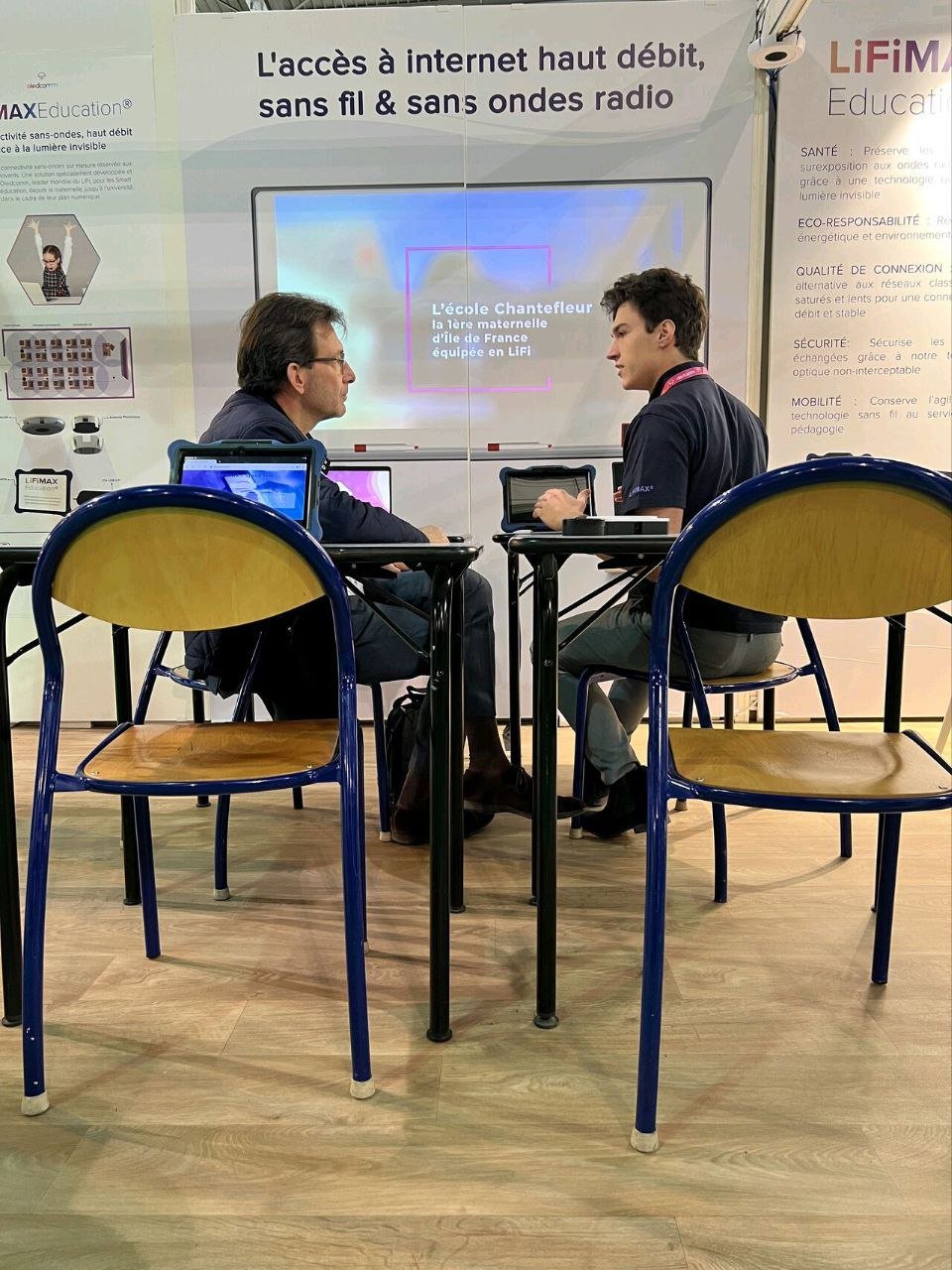

Photo credit to Oledcomm

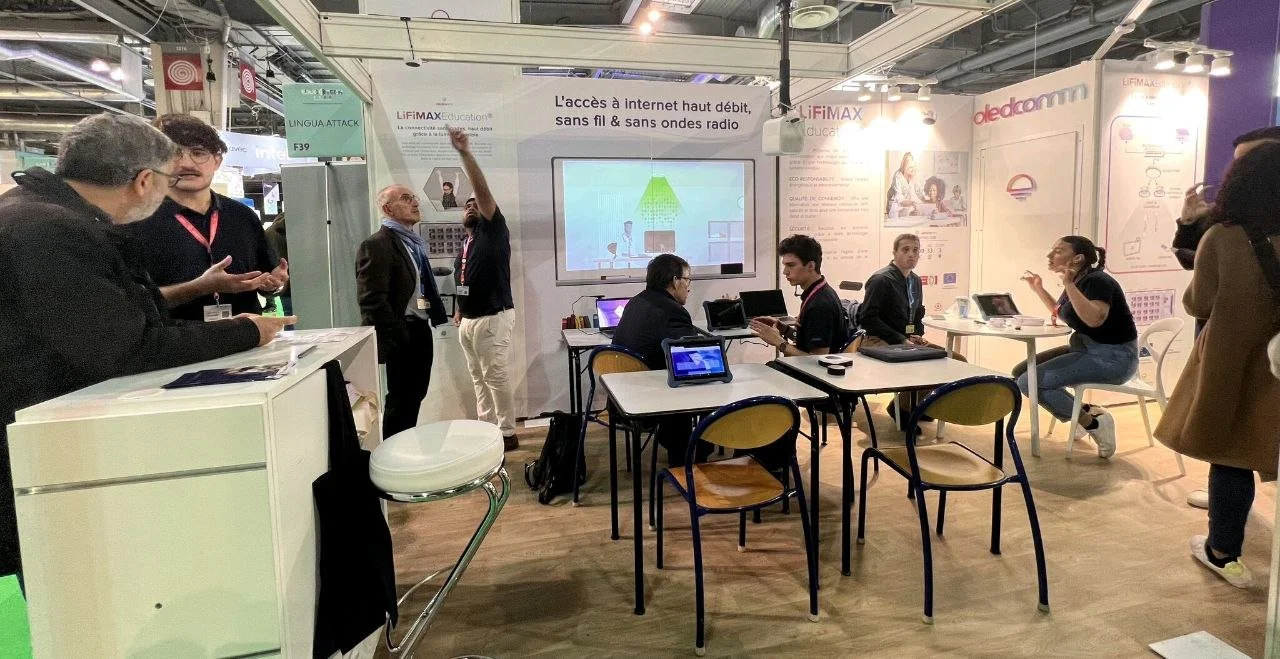

Photo credit to Oledcomm
Oledcomm designs and develops LiFi network interface devices that enable high-speed wireless data communication. It also serves LiFi equipment in the telecom, datacom, personal electronics, and industrial markets. The company’s product portfolio includes hubs, routers, switches, adapters, drivers, power supplies, and more.
Oledcomm was founded in 2012 and is based in Paris, France. Oledcomm's adventure began in 2005 in the research laboratories of the University of Versailles-Saint-Quentin with the first work on communication by visible light.
Following years of research & development and a passion for innovation, Oledcomm became the pioneer of LiFi (Light Fidelity) solutions and innovation on a global scale.
Based in the Paris region, Oledcomm employs around 20 people and designs complete solutions for LiFi operation, including microcontrollers, LiFi photoreceivers and software platforms.
Today, after more than 28 patents, 15 years of R&D, over 500 trusted clients and several awards, Oledcomm is pursuing a strong mission: to transform the 14 billion points of light in the world into a powerful communication network.
Educatech Expo Highlights
The Educ@tech Expo ended in style with highlights and countless meetings between visitors and exhibitors.
Here are a few highlights:
The visit of the Minister of National Education and Youth Mr. Pap Ndiaye
The learning workshop "molecular cuisine" with Michelin-starred chef Thierry Marx - Thierry Marx College
The meeting of the students of the Région Île-de-France with the Minister of Education, presentation of the stand by the high school students who participated in its design and realization.
The different initiations of digital professions with children
Innovation Hub workshops
The educational, digital and innovative solutions of the Village des startups
Conferences and workshops with experts who dealt with emblematic topics of digital education: inclusivity, equipping students and teachers, parity in the tech sector, improving working conditions, the environmental impact of digital technology and many other issues punctuated the debates.
PoE-Tic and Oledcomm were the LiFi representatives at the expo. The interest in LiFi in the Education sector in France has been growing.
And above all the super conviviality and ingenuity of all the exhibitors
PoE-Tic
PoE-Tic was founded in 2019. PoE-Tic offers its expertise in the implementation of alternative wireless infrastructures: BPL and BPL/LiFi (PoE-BPL and PoE-LiFi).
Dominique Le Bourse is the CEO and Founder of Poe-Tic. He is also a LiFi expert and the Designer and Manufacturer of PoE-Sea and MIELA: both innovative devices to moderate or totally suppress the exposure of young pupils to radio waves.
Dominique Le Bourse is an experienced Sales Manager with a demonstrated history of working in the information technology and services industry as well as skilled in Partner Relationship Management, Go-to-market Strategy, Management, Product Marketing.
He is an expert in alternative networks such as CPL pro, BPL (Broadband over Power Lines), BPL/WiFi, BPL/LiFi and LiFi.
MIELA System
Photo credit to Dominique LE BOURSE
The Mobile Internet LiFi Access (MIELA) is made by PoE-Tic in collaboration with Signify.
THE SOBRIETY OF RADIO WAVES IN MOTION
PoE-Tic develops and integrates alternative wireless network infrastructures that limit cabling work and guarantee sobriety or even total suppression of radio waves.
World leader in lighting, Signify has designed the Trulifi offer which allows transmitting high-speed data LiFi, with a bandwidth of around 150 Mbps.
PoE-Tic and Signify have combined their know-how to meet connectivity and mobility needs in environments that must be free of radio frequencies. This is how the MIELA was born; innovative LiFi equipment that combines Mobility, Sobriety and Scalability.
Mobility: Easily move your wireless LiFi Access Point, depending on your connectivity needs.
Sobriety: Communicate in non-visible light (IR), without any exposure to electromagnetic fields, in reference to the Bee law of February 9, 2015.
Scalability: Evaluate the advantages of LiFi in a mobile version, before opting for connected, low-energy LED lighting that will cover all of your buildings.
THE CONCEPT OF MIELA
Photo credit to Dominique LE BOURSE

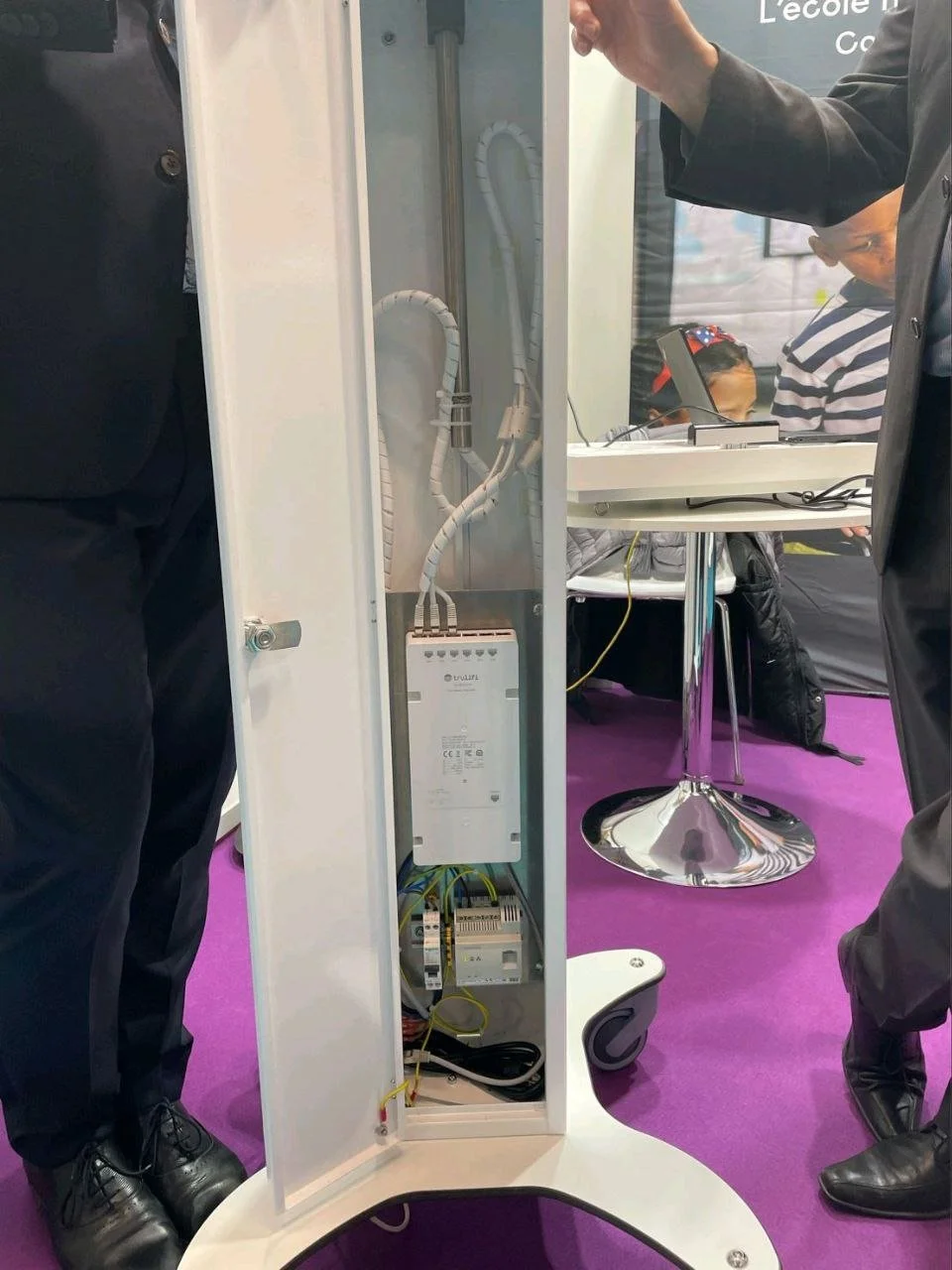

An Access Point is embedded inside the MIELA.
Three transceivers are placed at the top of the device which communicate with the USB keys connected to each workstation.
The Access Point is interconnected to the local wired network (RJ45) or via a Power Line Carrier (CPL) terminal supplied as an option.
The MIELA is height adjustable from 1.40 to 2.50 m to make it easier to pass through doors.
Once fully deployed, the MIELA covers an area of about twenty m² in which a maximum of sixteen users can share the high-speed LiFi connection. An optimal speed of 150/140 Mbps is obtained at 1.20 m from the USB key when the MIELA is set at 1.80 m from the ground; with a 60 cm worktop.
MIELA TECHNICAL CHARACTERISTICS
Photo credit to Dominique LE BOURSE
Trulifi configuration (starter kit): an Access Point, three transceivers and a USB key.
The number of connections per MIELA: a maximum of 16 Trulifi 6002 USB sticks can be managed by one Access Point.
Electrical protection: chassis electrical socket with switch + 16 A circuit breaker.
Wired network connection: RJ45 frame F/F socket.
Height (min/max): 1.40 / 2.50 m.
Dimensions of the mobile base: 55 x 55 cm
Wheels Type: Four Ø 95 mm wheels, two of which are fitted with a brake.
Total weight: 24 kg.
PLC configuration (optional): a Dinrail G.hn or HPAV2 module.
MAIN ADVANTAGES
As stated by Dominique Le Bourse, the MIELA makes it possible to have a LiFi wireless connection as close as possible to the users, without the need to carry out costly and tedious preliminary work. In addition, compatibility with PLC allows the MIELA to have broadband access to all power outlets, without any additional wiring.
Thanks to MIELA, nurseries, neighbourhood centres, kindergartens and maternity rooms now have a wireless connection that fully complies with legislation.
Thus, whether for budgetary or health reasons or simply as a precautionary principle, the MIELA is a major asset for adopting LiFi technology without delay.
MIELA DATASHEET IN ENGLISH
https://poe-tic.com/wp-content/uploads/2022/08/Plaquette-MIELA_en_v2.1.pdf
POE-TIC CONTACT DETAILS
If you are interested in getting more information about their products or purchasing any of their products, you can contact Poe-Tic on the following details:
Phone: +33 7 64 75 30 28
Email: info@poe-tic.com
Address: SAS PoE-Tic | 6, Rue du Bois Sauvage 91000 EVRY-COURCOURONNES
Li-Fi Conference 2022
The Li-Fi Conference 2022 Edition was a great success. Li Fi Tech News will very soon write articles on the topics treated at the Conference.
What is LiFi?
LiFi, also known as "Light Fidelity" is a wireless optical networking technology, which uses light-emitting diodes (LEDs) to transmit data. In 2011, professor Harald Haas made a LiFi demonstration at the TED (Technology, Entertainment, Design) Global Talk on Visible Light Communication (VLC).
VLC uses light as a medium to deliver high-speed communication like Wi-Fi and complies with the IEEE standard IEEE 802.15.7. The IEEE 802.15.7 is a high-speed, bidirectional, and fully networked wireless communication technology-based standard similar to Wi-Fi's IEEE 802.11.
How does LiFi work?
LiFi is a high speed, bidirectional, and fully networked wireless communication of data using light. LiFi constitutes of several light bulbs that form a wireless network.
When an electrical current goes through to a LED light bulb, a stream of light (photons) emits from the lamp. LED bulbs are semiconductor devices, which means that the brightness of the light flowing through them can change at extremely high speeds. The signal is sent by modulating the light at different rates. The signal can then be received by a detector that interprets the changes in light intensity (the signal) as data. Also when the LED is ON, you transmit a digital 1, and when it is OFF, you transmit a 0.
LiFi Benefits
The primary benefits of LiFi are as follows:
• Security: Provides entirely secure access. Where there is no light there is no data.
• Safety: Does not produce electromagnetic radiation and does not interfere with existing electronic systems.
• Localisation: Allows localisation due to the small coverage area of LiFi access point - localisation can be used for very precise asset tracking.
• Data density: Provides ubiquitous high-speed wireless access that offers substantially greater data density (data rate per unit area) than RF through high bandwidth reuse.
Credit to Oledcomm
LiFi Applications
LiFi can be used for so many applications and the list is increasing every year. You can read our updated list of Li-Fi applications at the following link:
Credit to pureLiFi
LiFi Systems Reviews by LiFi Tech News
OLEDCOMM LIFIMAX KIT REVIEW - ONE YEAR IN
We reviewed the LiFiMax kit produced by the leading French LiFi company Oledcomm. We bought this LiFi kit system at the end of 2020. After over a year of use, we decided to write a review of this LiFi system. We looked briefly at the profile of Oledcomm, a brief history of the LiFiMax system, the Kit box contents, some testing and performance results of this LiFi system, the customer experience and our own verdict (the good and the bad points) of the LiFiMax kit.
You can read the review on this link:
https://www.lifitn.com/blog/lifimaxreview
SIGNIFY TRULIFI 6002.1 STARTER KIT SYSTEM REVIEW
We also reviewed the Trulifi 6002.1 starter kit produced by Signify, the world leader in lighting for professionals, consumers and lighting for the Internet of Things. We got this LiFi kit system with the help of PCDSI and Signify around August 2021. In a similar fashion done with our previous review of the LiFiMax kit a few months ago, we will look briefly at the profile of Signify, a brief history of the Trulifi 6002.1 kit, the Kit box contents, some testing and performance results of this LiFi system, the customer experience and our own verdict (the good points and the bad points) of the Trulifi 6002.1 kit.
You can read the review on this link:
https://www.lifitn.com/blog/trulifi6002review
